Description
diversity fpv goggles EV800D 5.8GHz 40CH Diversity FPV 800*480 Goggles with DVR — PyrodroneThe EV800 is a box goggle that features 800x480 resolution LCD screen with vivid color and high luminance, Built in DVR and Battery at an amazing value! Check out all our Goggles and our Goggle Modules! Features Bright 800x480 5" LCD Screen specially tuned for FPV racing Separable design. Screen can be used as small monitor on radio controller or with tripod! 92% Transparent 3x Lens boosts the video to give you that immersive view Super wide viewing

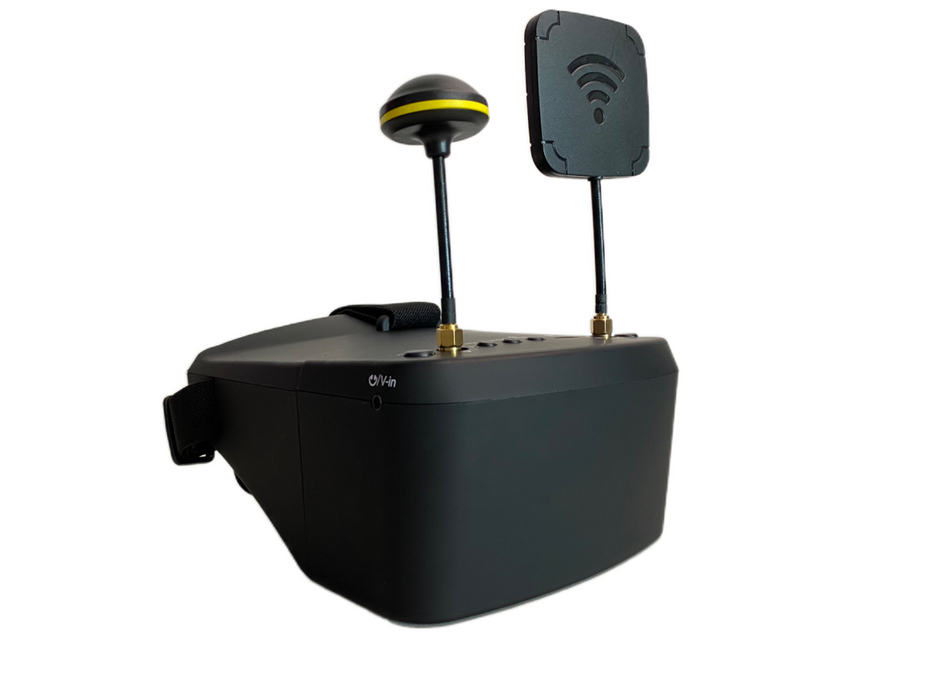

The EV800 is a box goggle that features 800x480 resolution LCD screen with vivid color and high luminance, Built in DVR and Battery at an amazing value!
Check out all our Goggles and our Goggle Modules!
Features
- Bright 800x480 5" LCD Screen specially tuned for FPV racing
- Separable design. Screen can be used as small monitor on radio controller or with tripod!
- 92% Transparent 3x Lens boosts the video to give you that immersive view
- Super-wide viewing angle up to 82
- True Diversity: 2x Super Sensitive (-90dB) RX5808 PRO modules
- 40 Channels with Race Band (See Frequency Chart Below)
- Advanced auto-search function and the working frequency show on screen
- Great performance when two types (Linear and Omni) of antenna are used.
- Build in DVR records up to 720x576 full frame rate video with no frame loss (Class 10 card required)
- Two system (Display/Record duo core separated chipsets) ensure no delay in displaying and no frame lost in recording (please use C10 super speed card to ensure the full frame recording)
- Replay in your videos in the Goggle Menu
- Friendly unintrusive OSD. No blocking of important flying OSD information.
- Three-way Adjustable Head Strap
- Built-in 7.4V 1200mAh battery, each full charge offer 2 hours working time;
- Wide range re-charge voltage 11-20V;
- Accept 2S or 3S batteries as back-up power source, to prolong the working time.
Specifications
- Screen Size: 5"
- Screen Resolution: 800x480 (No blur after enlarge by the lens)
- Screen Brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
- View Angle: 140/120 degree(Horizontal/Vertical)
- RF Modules: 2x (-90dB) RX5808 PRO modules
- Battery: Built-in 7.4V 1200mAh Battery
- Input Voltage: 10-22V typical recharging voltage is 12V, 2S or 3S (7.4V-11.1V) LiPo can be used as back up power to have long working time.
- Charger : 12V,2A, DC 2.5mm
- Dimension: 180*145*82mm
- Weight: 362g without antenna
Includes
- 1x EV800D Goggles
- 1x Charger
- 1x 5.8G Half-Planar Antenna with SMA Connector
- 1x 5.8G RHCP Cloverleaf Antenna with SMA Connector
- 1x AV In Cable
- 1x DC power cable to JST connector
- 1x Instruction manual (English)
- Packaged in EVA Carrying Case
